DC Charging Station for Electric Buses & Trucks (30–60 kW)

Omnicar ODC60 charging station with dual CCS2 pistols for European EV fleets 30-60 Kwh
Omnicar ODC60 charging station with dual CCS2 pistols for European EV fleets 30-60 Kwh

Product description

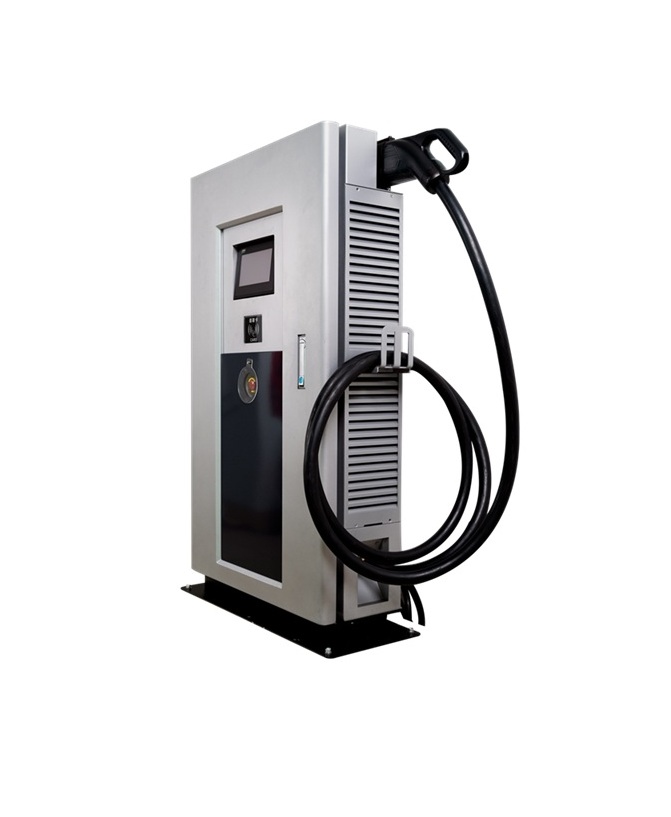

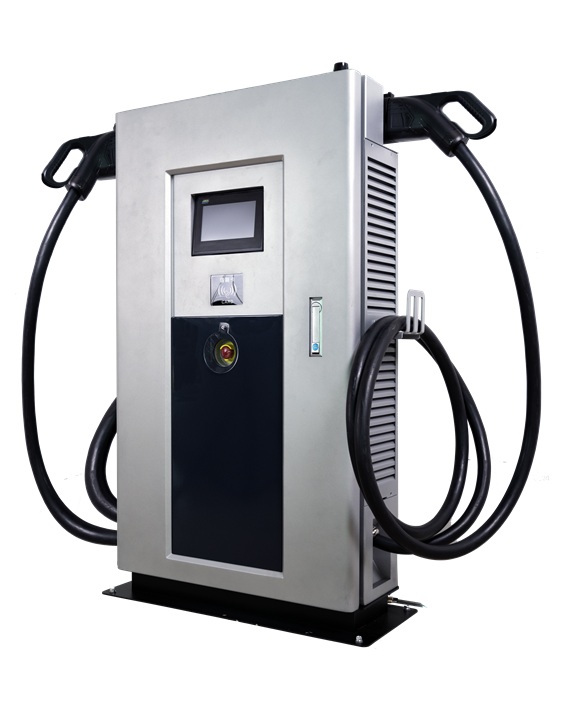

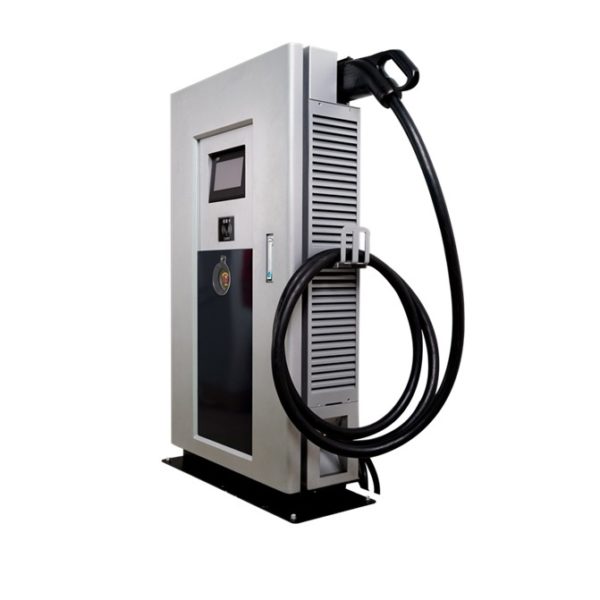

⚡ Omnicar ODC60 – DC Charging Station for Electric Buses & Trucks (30–60 kW)

Compact. Compliant. Fleet-Proven.

The Omnicar ODC60 is a high-performance electric bus charging station tailored for the European EV market. With scalable power from 30 to 60 kW, it is perfectly suited for public transport operators, logistics fleets, and depot infrastructure across Europe.

Designed around EU charging protocols and infrastructure norms, the ODC60 delivers safe, efficient DC fast charging with CCS2 connectors, secure badge-based access, and intuitive touchscreen control. Whether you’re powering an electric truck charging infrastructure or rolling out a municipal bus depot charging network, the ODC60 ensures full compliance with European standards and long-term reliability.

Key Benefits

  • Charging Power Range: 30–60 kW (modular to fit fleet size and use case)

  • Output Voltage: 200–750 V (optional 1000 V available for compatible vehicles)

  • Connector Type (Pistol): ✅ CCS2 (Combined Charging System – Type 2)

  • Dual-Gun Ready: Simultaneous charging of 2 vehicles with intelligent power allocation

  • Secure Access: RFID badge activation, app, or manual start

  • User Interface: Color touchscreen with multilingual UI for EU operators

  • Smart Communication: Ethernet, CAN, RS485, optional 4G/Wi-Fi integration

  • Compliant Protocols: OCPP 1.6 (JSON), ISO 15118, DIN 70121

  • Protection Rating: IP54 – robust for all-weather outdoor use

  • EU Standards: Fully aligned with GBT20234 / EN62196 / EN61851-1 / DIN 70121 / ISO 15118

️ Made for European Fleet Operations

The ODC60 is the perfect solution for:

  • Electric bus depot charging in EU municipalities

  • Electric truck fast charging for freight yards and fleet operators

  • High-power EV charger for buses in public or private terminals

  • Regional deployment of electric truck charging infrastructure

  • Scalable electric fleet charging solutions for cities and logistics

Engineered to support European grid standards and interoperability mandates, the ODC60 ensures seamless rollout across EU countries.
